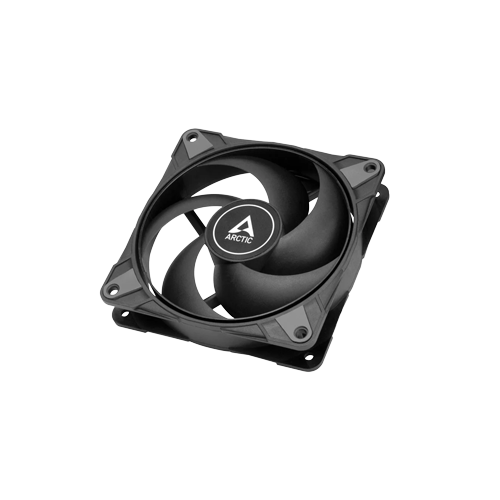

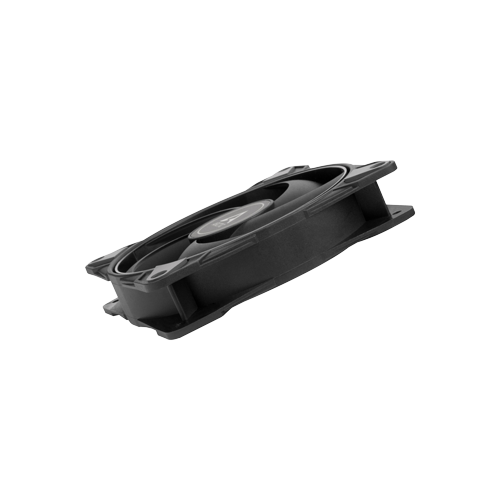

Arctic P12 Max (Black) Fan

Specifications

WARRANTY

06 YEARS HARDWARE WARRANTY

Performance

Fan speed

200–3300 RPM (PWM, 0 RPM <5%)

Airflow (max)

81.04 CFM (137.69 m³/h)

Static pressure (max)

4.35 mmH₂O

Noise level (max)

~37.5 dB(A) / 0.6 Sone class

Operating ambient temperature

0–40 °C

Fan

Fan frame

120mm, closed‑ring rotor design

Control type

4‑pin PWM (with 0 RPM mode)

Connector

4‑pin PWM, daisy‑chain capable

Fan bearing

Dual ball bearing (DBB)

Electrical

Rated voltage

12 V DC

Starting voltage

~3.9 V DC

Rated current / power

0.29 A / 3.48 W

Cable length

0.29 A / 3.48 W

Dimensions & weight

Size

120 × 120 × 25 mm

Weight

~184 g
